Αυτόματο BIB secondary bagging machine for small lime pouches

Εισαγωγή:
The secondary packaging unit is a fully automatic packaging process that automatically puts the products output by the primary vertical packaging machine into woven bags and China famous brand s and outputs them according to requirements (arrangement form, quantity, etc.). This unit mainly completes the automatic packaging process of neatly putting the packaged bagged products into bags and China famous brand ing them out of bags as required, and realizes automatic filling of small bags into bags, thereby saving manpower, material resources and financial resources, reducing production costs and improving production efficiency. This unit is widely used in powder and granular industries such as washing powder, salt, sugar, seed milk powder, etc., and is the preferred equipment for customers.
Πλεονεκτήματα:
1 This packing unit can realize bag feeding bag open counting filling moving output China famous brand ing fully automatically
2 Η μονάδα λειτουργεί μέσω οθόνης αφής, οι προδιαγραφές λειτουργίας και η αλλαγή συντήρησης είναι πολύ βολικές, ασφαλείς και αξιόπιστες.
3 Μπορεί να ρυθμιστεί για να επιτύχει μια ποικιλία μορφών για να καλύψει τις διαφορετικές ανάγκες των πελατών
Μορφή συσκευασίας: Διαφορετική μορφή συσκευασίας χρειάζεται διαφορετική μονάδα μηχανής συσκευασίας
Διαδικασία παραγωγής:

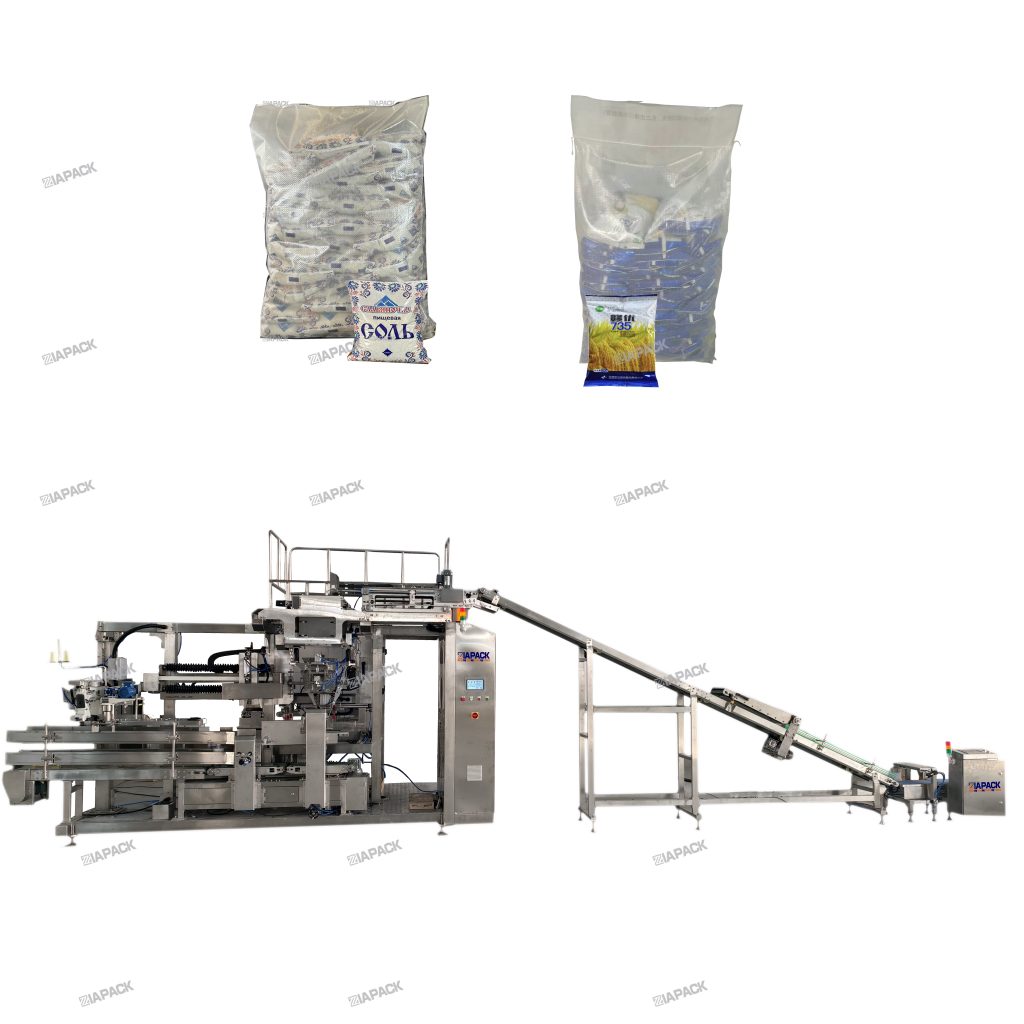

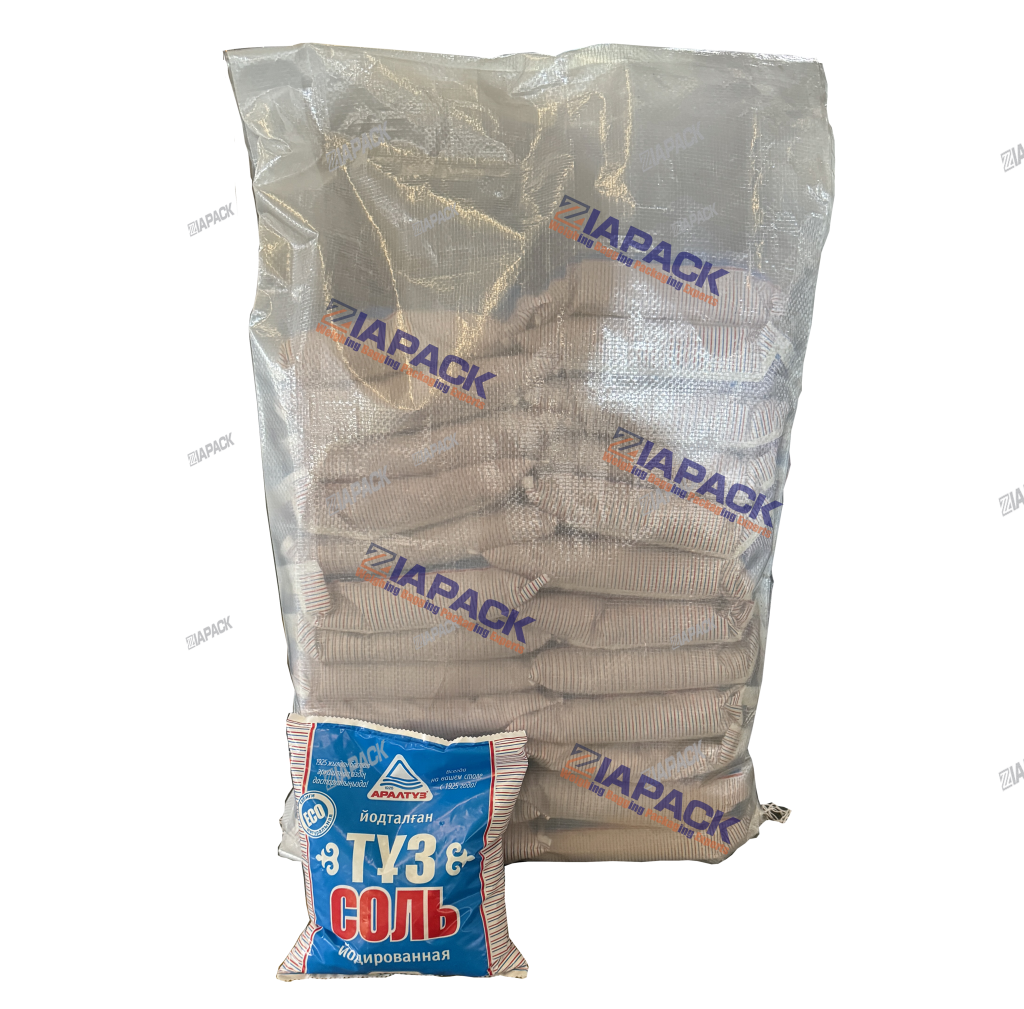

For secondary packaging (auto putting the small pouches into PP woven bag):
Horizontal conveyor belt for collecting the finished sachets → slope arrangement conveyor will make the sachets flat before counting → Acceleration belt conveyor will make the adjacent sachets leaving enough distance for counting → counting and arranging machine will arrange the small sachets as requirement → the small sachets will load into the bagging machine → bagging machine seal and cut the big bag → belt conveyor will take the big bag under the packaging machine.
Βασικές τεχνικές παράμετροι:
| Περιοχή συσκευασίας | 1-5kg /250g-1kg |
| Υλικά συσκευασίας | PP woven bag |
| Ταχύτητα συσκευασίας: | 4-6big bags/min 35-120pouches /min |
| Εξουσία: | 5.5Kw 380V±10% 50Hz |
| Compressed air: | 0,6 ΜΡα |
