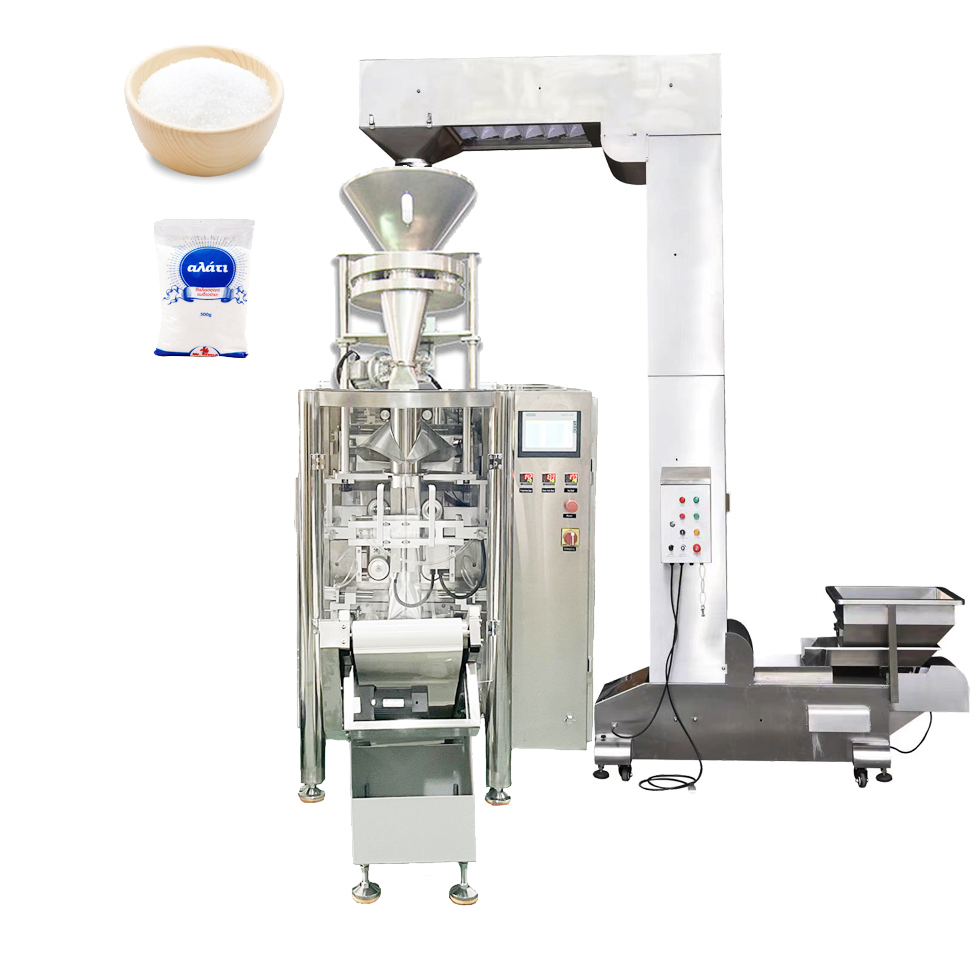

This machine unit is including one set ZL520 vertical bag forming filling sealing machine and one set LB1000 Volumetric cups measuring machine .The whole machine unit can reach automatic bag making ,Product weighing ,product filling sealing and date coding .Widely use for packing slat ,rice ,bean and other granular product .
1,ZL520 Vertical bag forming filling sealing packaging machine
The whole machine made by Stainless Steel 304, Material contact part made by SUS316 .This machine equipped with bag-making, cutting, code printing , etc. OMRON PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve .
Weighing Range: 500-2000g(Adjusting the volumetric cups )
Packaging Speed:25 -45bags/min
Bag size: (100-380)*(80-260)mm(L*W)
Compressed air requirement: 0.6Mpa 0.65m³/min
Reel outer diameter: 400mm

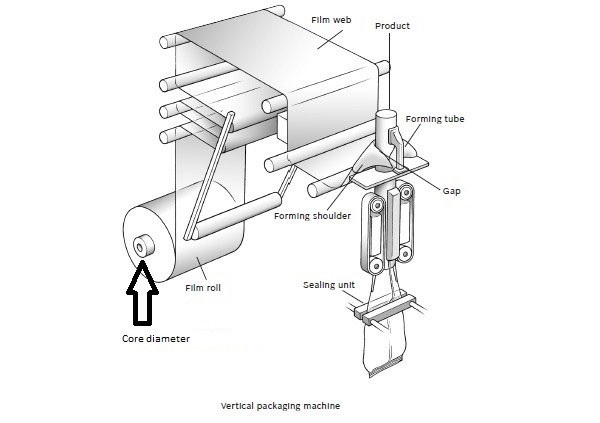

Core inner diameter: 75mm
Machine weight: 800kg
Power source: 5.5kW 380V±10% 50Hz
